It has been designed to be used equally well indoor and outdoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

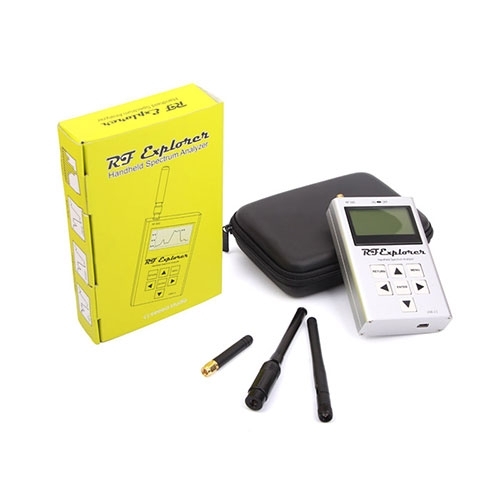

This model includes a 6G baseline unit plus an RFEMWSUB3G Expansion Module conveniently assembled and tested. It comes with two SMA connectors and three antennas: a nice dual band telescopic 144/430MHz wideband telescopic antenna for all Sub-GHz frequencies, a rubber duck 5.8 GHz and a whip helical for 2.4GHz band. Additional, specific band antennas may be needed to cover efficiently some of the frequencies supported.

The combination of these two models offer coverage for most used communication frequency range used in modern communication technologies including WiFi, Bluetooth, Wireless Audio and Video, LTE, GSM, GPRS, Satellite, CATV, DTV, etc.

Features

• Pocket size and lightweight

• Solid aluminum metal case

• Includes a transport EVA carry case for RF Explorer

• Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite, and Averaging modes

• High capacity Lipo for 16hs+ of continuous run, rechargeable by USB

• Windows PC client Open Source

• Wideband coverage to all popular RF frequencies, starting at 15MHz and going up to 2.7GHz, as well as 4.85-6.1GHz. This includes very interesting frequency areas such as 2m HAM radio, all VHF and UHF, FM radio, GPS, WiFi and WiMax, Bluetooth, etc.

Note: this unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available. For signal generator and tracking please consider RF Explorer Signal Generator model RFE6GEN.

Tech support

For questions and support, please visit https://support.rf-explorer.com

If you'd like to buy or change the RF Explorer Battery, please click here.

Compliance

All RF Explorer models are complaint with FCC as well as CE regulations.

All RF Explorer Wideband models have been certified under EN/IEC61236 and EN/IEC61000.

All RF Explorer models are RoHS compliant
